Description
Base Material | Polycarbonate | Stainless Steel Available |
Size | The deck base is 9″ by 15.25″ and has a maximum channel length of 12". |
Max Pipe Clearance | Adjustable support height from 4.25" to 9.25″. |
Max Load Weight | Maximum load weight may not exceed 335 lbs. per pipestand. |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

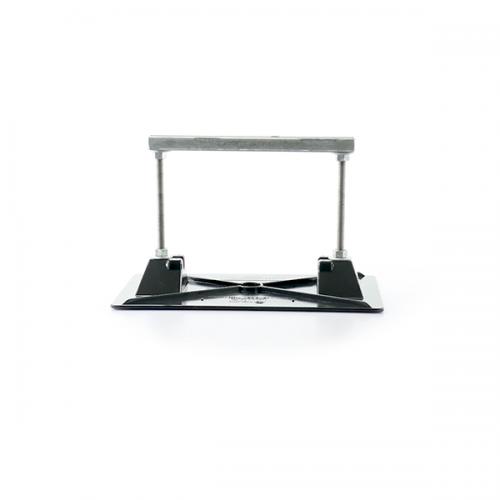

The 12-Base Strut-8 is a versatile rooftop support designed for various applications. This product is ideal for supporting roof-mounted electrical conduit, solar piping, gas pipes, and cable trays. It features a robust design that ensures stability and reliability.
Key Features
- Base Material: The base is made of durable polycarbonate, providing excellent strength and UV resistance.
- Deck Base Size: It measures 9 x 15.25 inches, offering a solid foundation for your installations.
- Pipe Clearance: The height is adjustable, ranging from a maximum of 9.25 inches to a minimum of 4.25 inches. This flexibility allows for easy installation and adaptation to various rooftop conditions.
- Load Capacity: Each pipestand can support a maximum load of 335 pounds, ensuring it can handle multiple pipes or conduits when used as a strut mounted pipe support.
Installation and Use
To install, simply center the pipestand beneath the pipe. Adjust the height to your desired level, ensuring the strut is level. This product is compatible with all current deck types and roofing membranes.
Moreover, the 12-Base Strut-8 can be used effectively as a strut mounted pipe support. It allows for the ganging of multiple conduits or pipes, which can be attached using standard pipe clamps. This feature enhances its utility, especially in complex installations.
Additional Applications
In addition to its primary uses, the 12-Base Strut-8 also serves as a cable tray strut support. This makes it an excellent choice for projects that require both pipe and cable management on rooftops.
Overall, the 12-Base Strut-8 is a reliable and adaptable solution for rooftop support needs. Its combination of strength, adjustability, and compatibility makes it an essential component for any roofing project. Whether you need a strut mounted pipe support or a cable tray strut support, this product delivers exceptional performance.
