Description
Base Material | Polycarbonate |
Size | The deck base is 7.5″ by 10″ and the maximum cradle width is 4". |
Max Pipe Size | 5.5" outside diameter. |
Max Pipe Clearance | Minimum clearance height of 3.875" and maximum clearance height of 8". |
Max Load Weight | Maximum load weight may not exceed 172 lbs. per pipestand |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

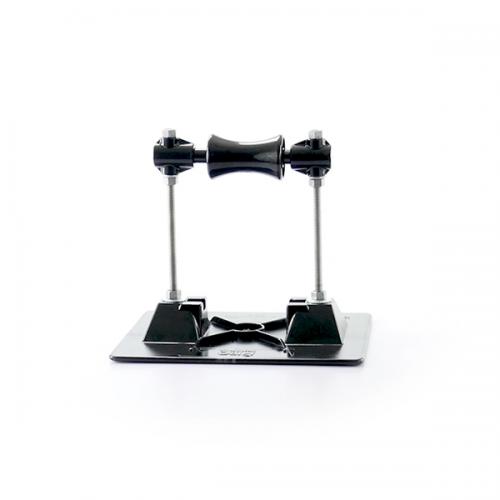

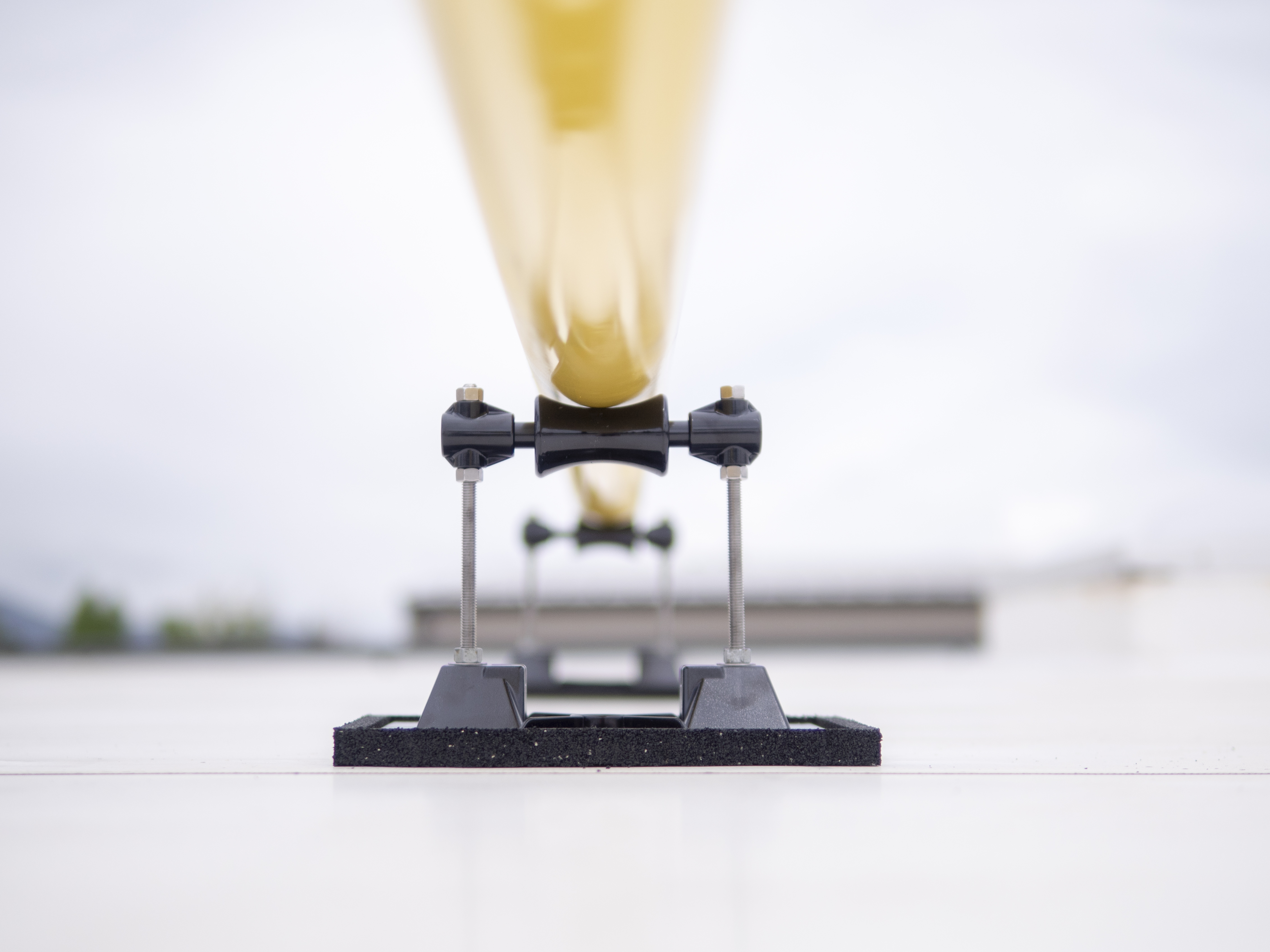

The 3-RAH-8 is a high-quality rooftop roller pipe support designed for rooftop applications. This product is perfect for supporting gas pipes, electrical conduits, solar piping, and other mechanical piping systems. Its robust design ensures durability and stability in various weather conditions.
Key Features
Base Material: The 3-RAH-8 is made from strong polycarbonate, which provides excellent resistance to harsh environments. This material helps protect the support from wear and tear.
Deck Base Dimensions: Additionally, the support features a compact deck base measuring 7.5 x 10 inches and the maximum cradle width is 4 inches. This size makes it easy to install in tight spaces.
Adjustable Height: One of the standout features is its adjustable height. Specifically, the support can be set between a maximum height of 8 inches and a minimum height of 3.875 inches. Therefore, the support’s flexibility allows for various installation needs.
Load Capacity: The 3-RAH-8 can support a maximum load of 172 pounds per pipestand. Therefore, this capacity ensures it can handle different piping systems effectively.

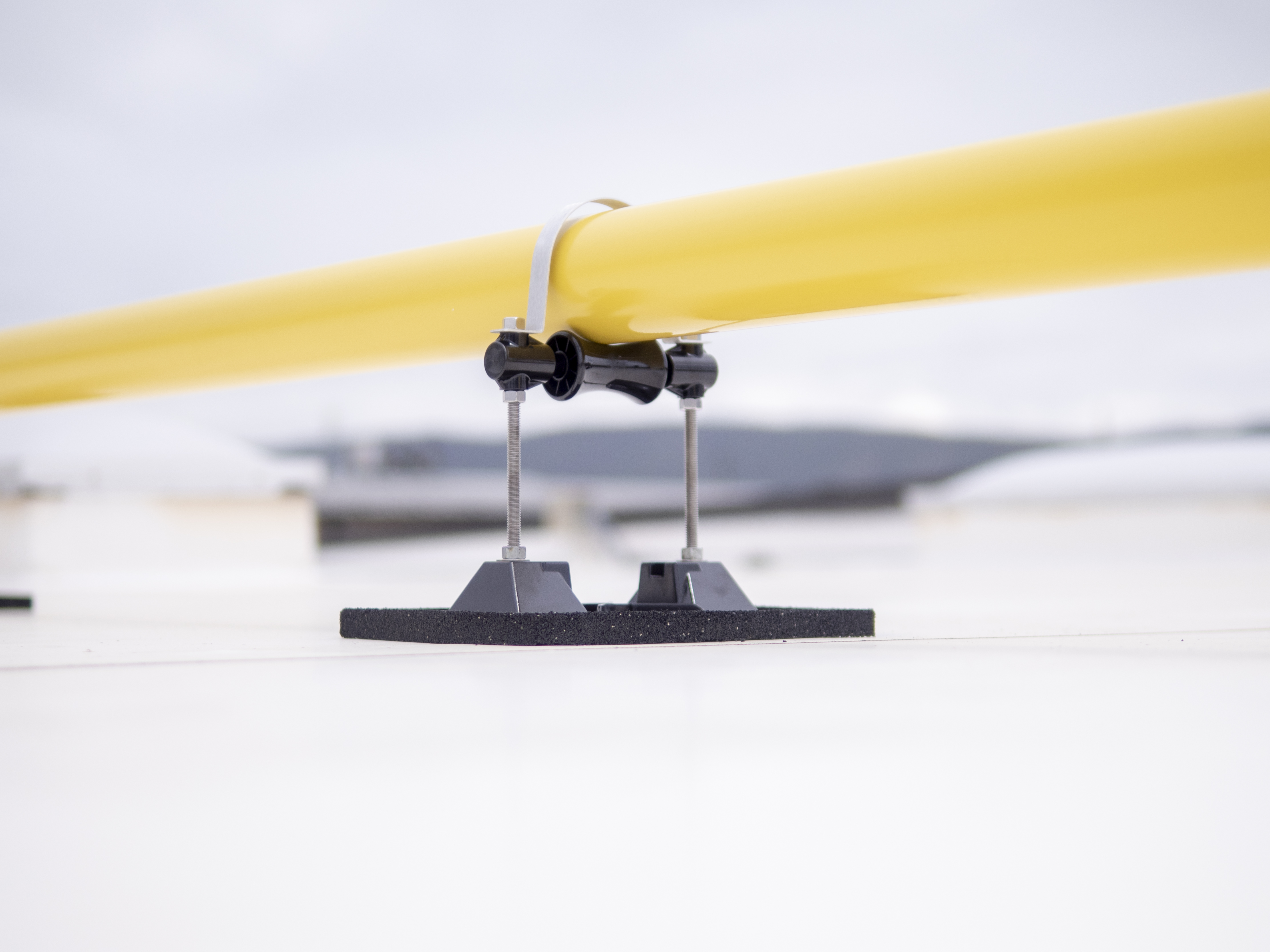

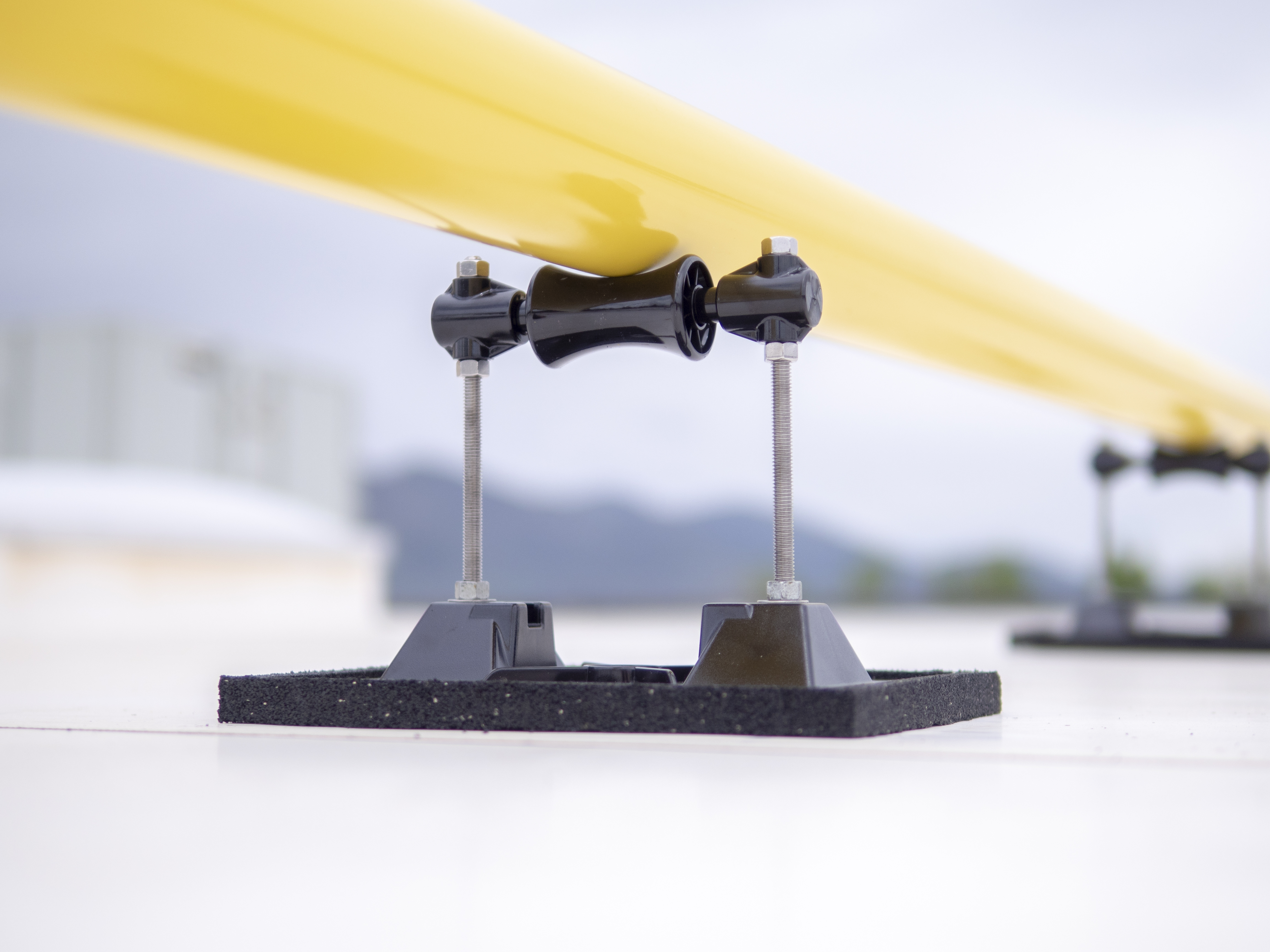

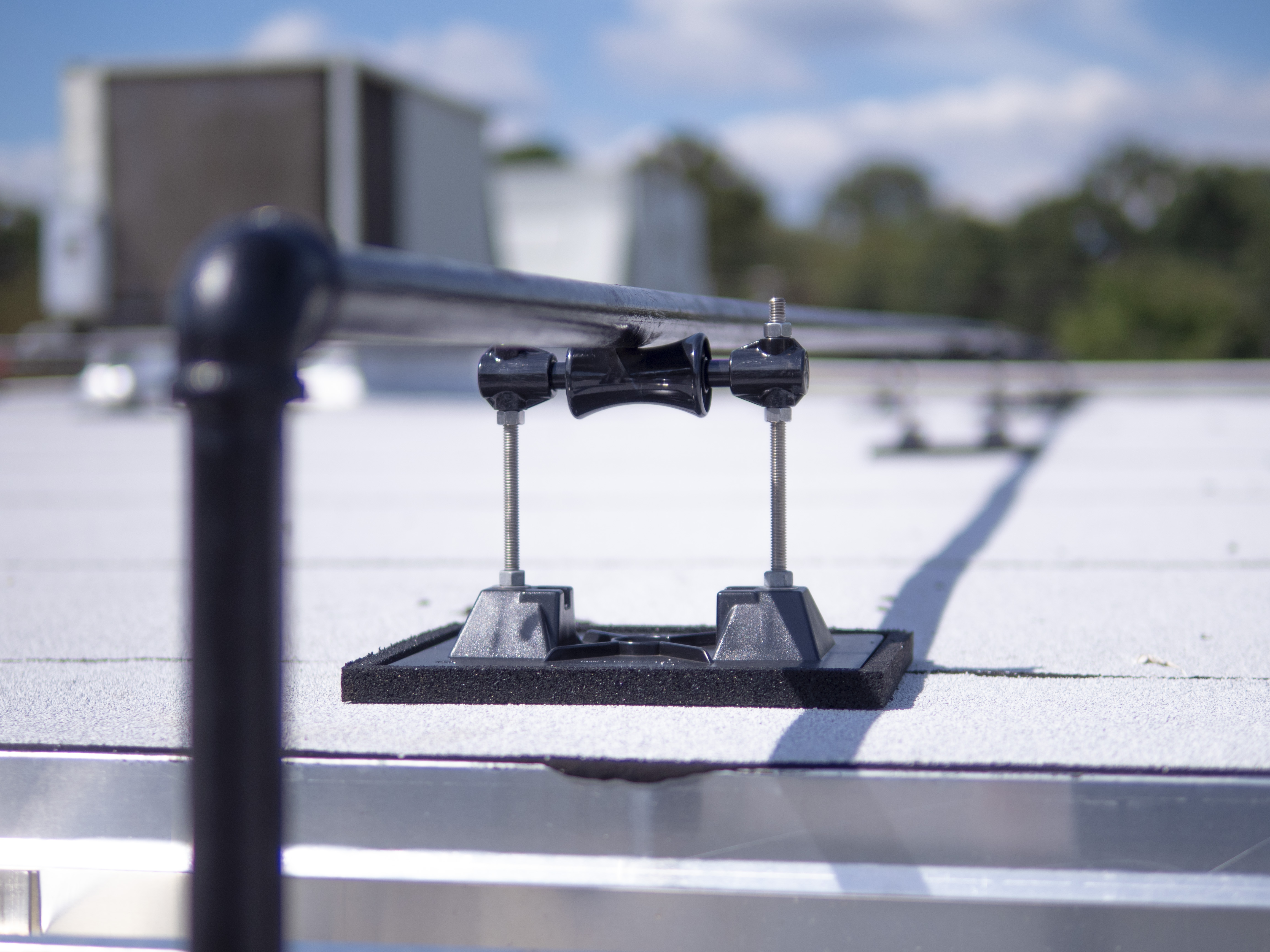

Pipe Rest Design: It includes a self-lubricating roller made from polycarbonate. This design allows for smooth movement and reduces friction. As a result, it helps absorb thermal expansion and contraction, protecting the roof membrane.
Installation and Compatibility

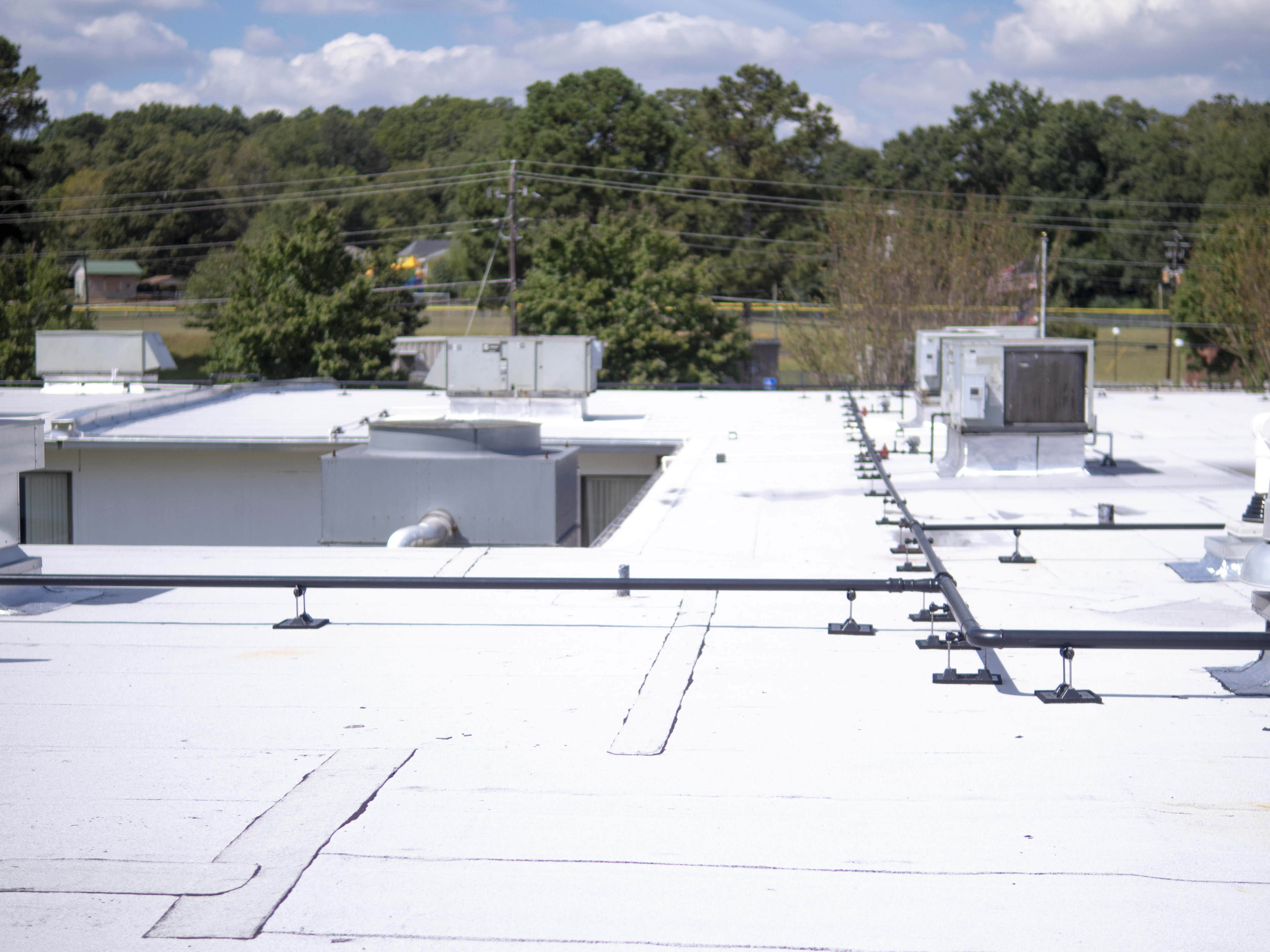

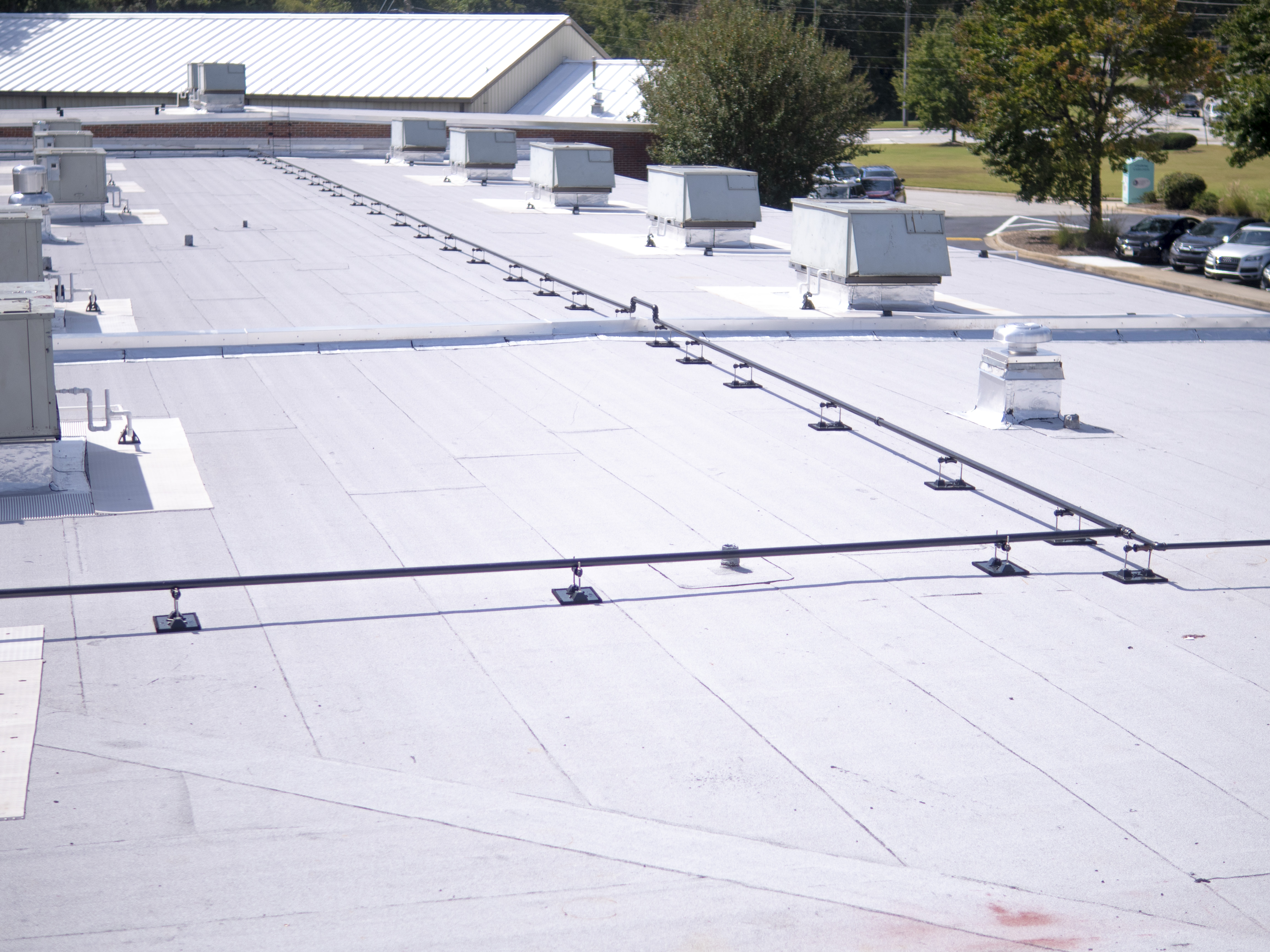

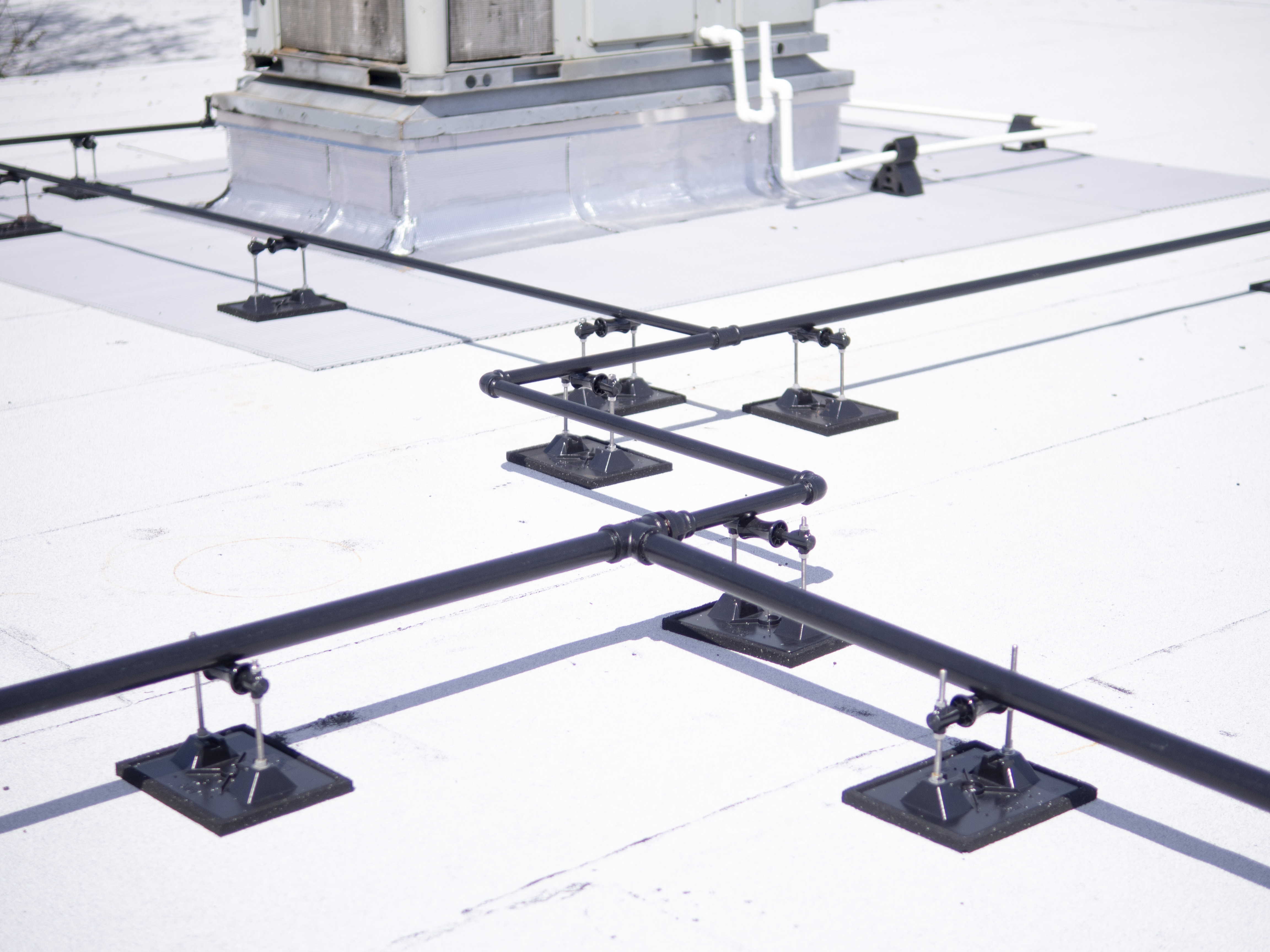

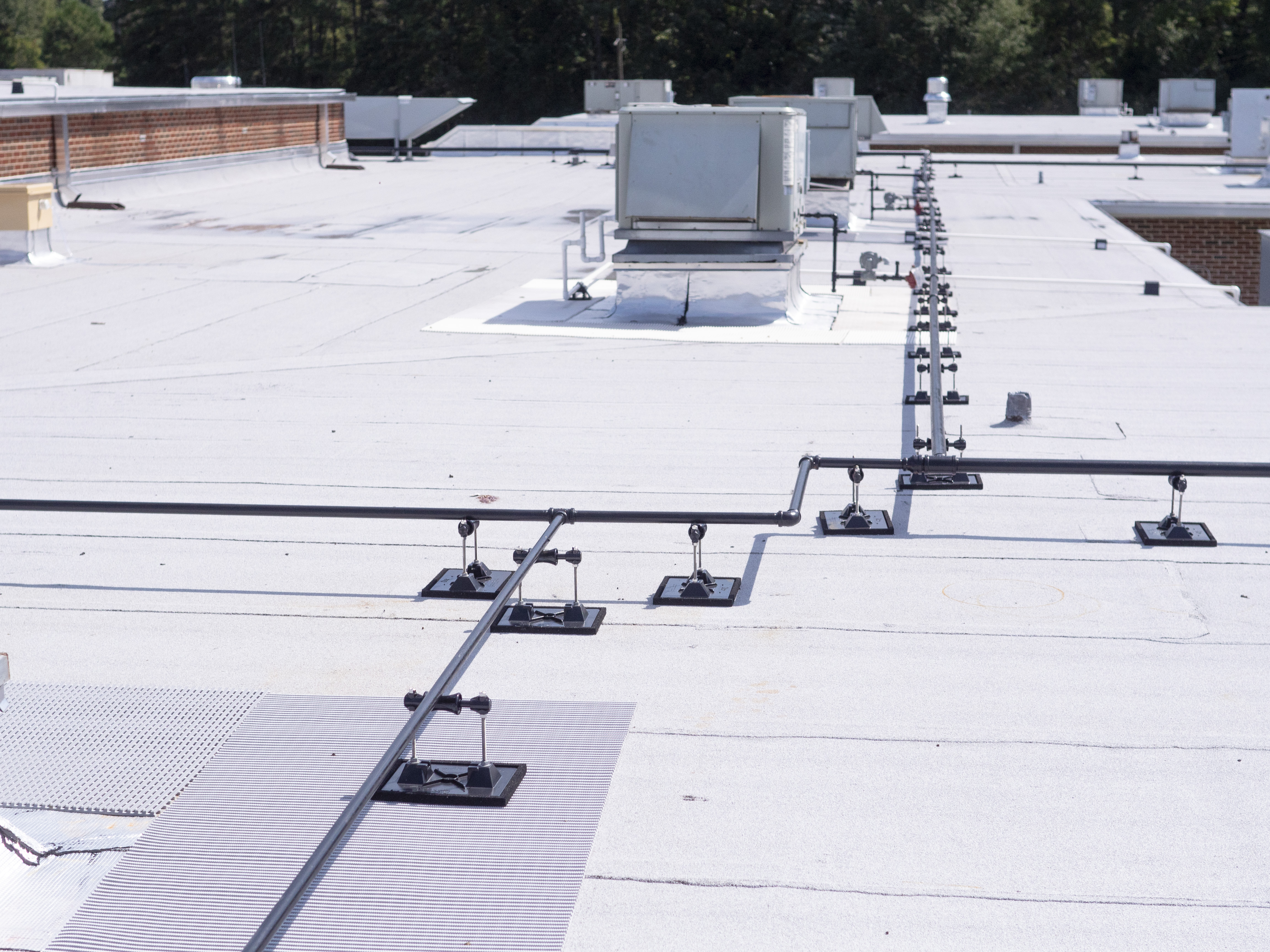

The 3-RAH-8 is compatible with all common roofing types and membranes. It works well with built-up and single-ply roofing systems. Additionally, the rounded edges of the base prevent any damage to the roof surface during installation.
Performance

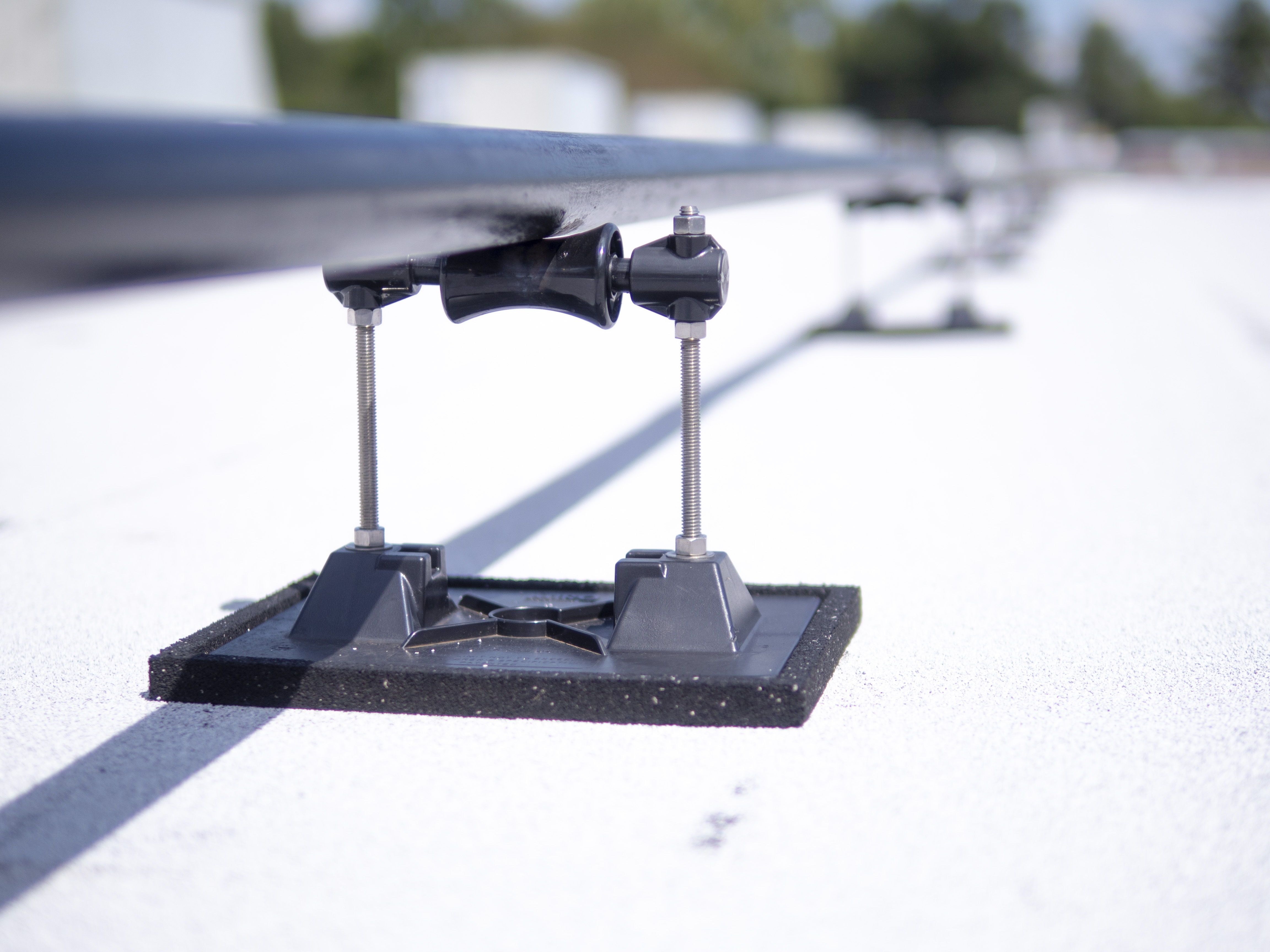

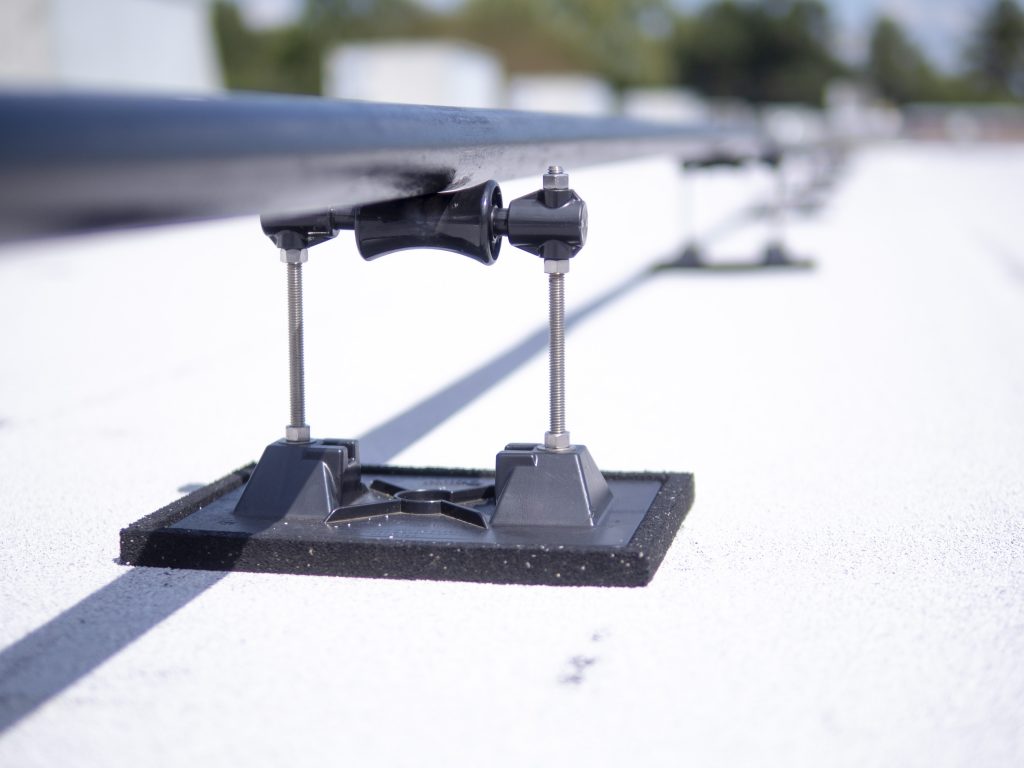

This roller support system is designed to keep the pipestand directly beneath the pipe. Furthermore, it allows for lateral movement, which is essential for maintaining the integrity of the piping system over time.
Overall, the 3-RAH-8 rooftop roller pipe support is an essential product for any roofing project that requires dependable pipe support. Its combination of strength, adjustability, and ease of installation makes it a top choice for professionals.
