Description
Base Material | Polycarbonate |
Size | The deck base is 9″ by 15.25" and the maximum cradle width is 4". |
Max Pipe Size | 5.5" outside diameter. |
Max Pipe Clearance | Minimum clearance height of 4.5" and maximum clearance height of 13.625". |
Max Load Weight | Maximum load weight may not exceed 186 lbs. per pipestand |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

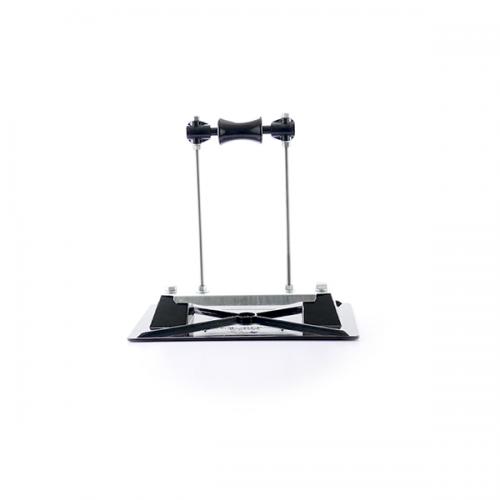

The 4-RAH-14 is a highly reliable rooftop roller support designed specifically for roof-mounted applications. This versatile support is ideal for gas pipes, electrical conduits, solar piping, and other mechanical piping systems. Importantly, its unique design effectively absorbs thermal expansion and contraction, which helps prevent damage to the roof membrane.
Key Features
Base Material: The rooftop roller support features a strong polycarbonate base that ensures durability and resistance to harsh weather conditions. Moreover, this lightweight material is perfect for various roofing types.
Deck Base Size: Additionally, the 4-RAH-14 has a spacious deck base measuring 9 x 15.25 inches. This size provides excellent stability and support for larger piping systems.
Adjustable Height: The pipe clearance is adjustable from a maximum height of 13.625 inches down to a minimum height of 4.5 inches. This flexibility allows for easy customization based on project requirements.
Load Capacity: With a maximum load weight of 186 pounds per pipestand, the 4-RAH-14 rooftop roller support is built to handle heavy loads. Therefore, it is crucial to ensure that each rooftop roller support is properly elevated to evenly distribute weight across all locations.
Roller Material: The composite rubber roller allows for smooth movement of the pipes, accommodating thermal expansion without binding. This design helps extend the life of both the support and the piping system.
Stainless Steel Components: The rooftop roller support includes stainless-steel all-thread, axle, and hardware, ensuring resistance to rust and long-lasting durability.
Recommended Spacing: For optimal performance, the recommended spacing between supports should not exceed 10 feet, depending on the load.
Overall, the 4-RAH-14 rooftop roller support is an essential solution for any roofing project that requires reliable and adjustable pipe support. Its combination of strength, load capacity, and easy installation makes it a preferred choice among industry professionals.
