Description
Base Material | Polycarbonate |
Size | The support consists of (4) 7" by 10" bases with a 48" length of channel. |
Max Pipe Clearance | Adjustable support height from 4.125" to 5.5" |
Max Load Weight | Maximum load weight may not exceed 172.5 lbs/ft. |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

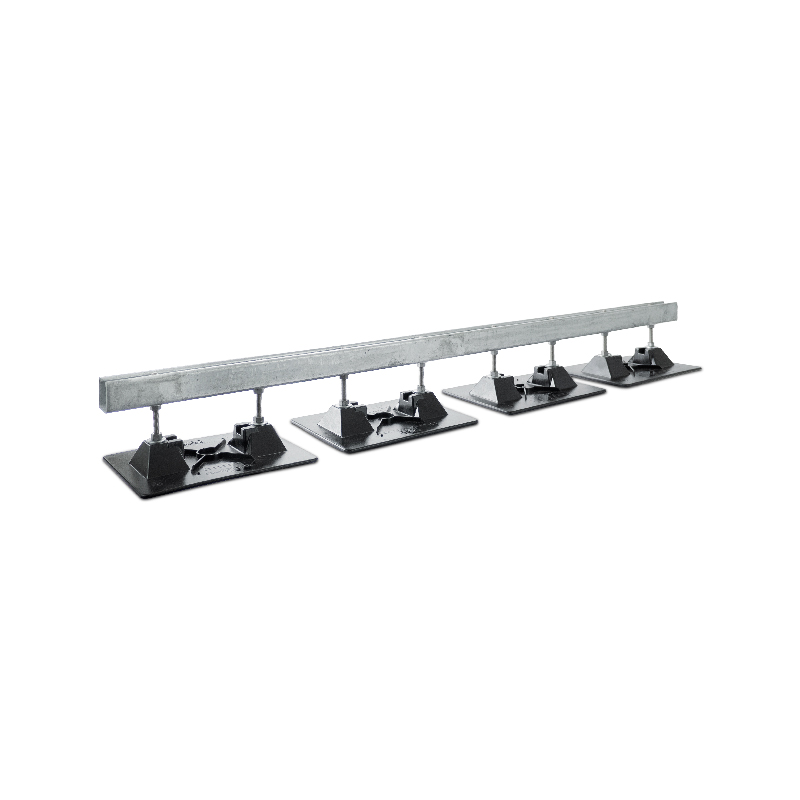

The 48-Base Strut-5 is an essential component of strut support systems, designed for various rooftop applications. Specifically, this product is perfect for supporting roof-mounted electrical conduit, solar piping, gas piping, and cable trays. Therefore, it provides a reliable solution for your rooftop needs.
Key Features
- Base Material: Made from durable polycarbonate, ensuring long-lasting performance.
- Deck Base: Features four 7 x 10 inch bases for stability.
- Pipe Clearance: Adjustable from a maximum height of 5.5 inches to a minimum of 4.125 inches. This flexibility allows for easy installation.
- Load Capacity: The maximum allowable uniform load is 172.5 pounds per foot, making it suitable for various strut support systems.
- Pipe Rest: The 48-inch hot-dipped galvanized steel struts are securely connected with stainless-steel all-thread to the base. Consequently, this ensures a strong and stable support.
- Spacing: Horizontal support spacing can be adjusted according to pipe specifications. Importantly, the recommended spacing should not exceed 10 feet, depending on loading conditions.
Additionally, the 48-Base Strut-5 is compatible with all current deck types and roofing membranes. This versatility makes it an excellent choice for any rooftop project.
Installation Tips
- Center the pipestand beneath the pipe to ensure proper alignment.
- Adjust the height to your desired level.
- Ensure that the load is evenly distributed across the strut support.
Overall, the 48-Base Strut-5 is a reliable strut rooftop support that meets various needs. Its adjustable features and strong materials make it a top choice for your needs of piping and conduit strut support systems, roof cable tray supports and other mechanical equipment.
