Description
Base Material | Polycarbonate is standard. Stainless steel is also available. |
Size | The deck base is 9" x 15.25" |
Max Pipe Clearance | Max pipe clearance depends on project requirements. Typical 6-H supports do not exceed 36" above roof. For higher clearance see 8-H |
Max Load Weight | Maximum loading from any MIRO base to the finished roof surface is not to exceed 3.0 psi unless specifically allowed otherwise in project specifications. |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |
PIPE HANGER OPTIONS
Clevis Hanger
Roller Hanger
Roller Chair
Trapeze
The 6-H Pipe Hanger Supports offer a versatile and robust solution for rooftop piping systems. These custom supports are designed to accommodate various pipe sizes and configurations, making them ideal for both single and multiple pipe installations.
Key Features:

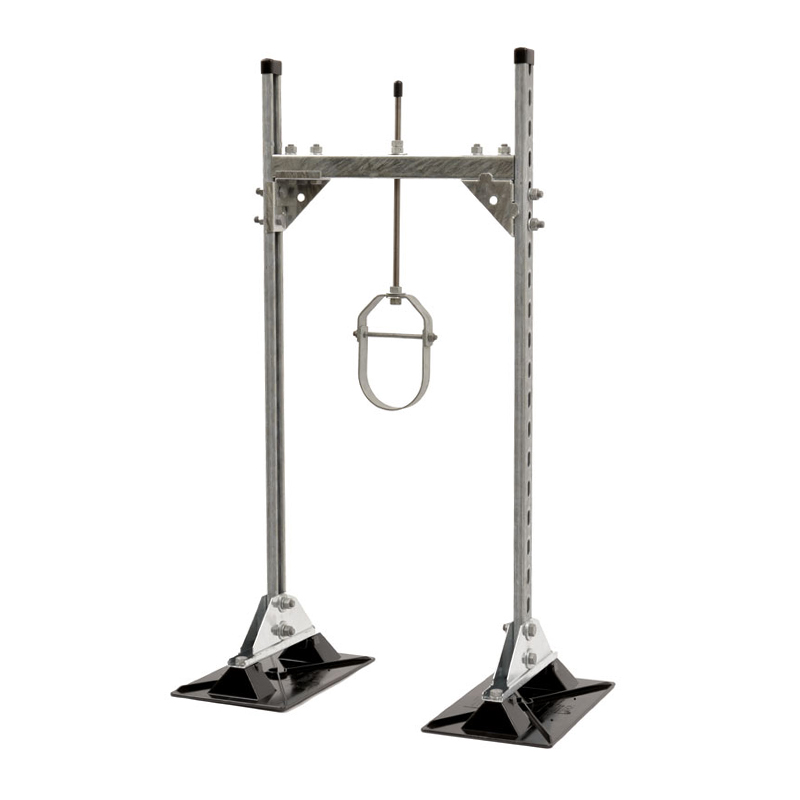

Strut-Framed Design: The 6-H support features a strut-framed structure with two load-distributing bases, vertical strut legs, and a horizontal strut header. This design enhances stability and strength, ensuring reliable performance in different environmental conditions.
Material Options: Customers can choose from multiple base materials, including polycarbonate plastic, hot-dip galvanized steel, or stainless steel. This flexibility allows for customization based on project requirements and environmental factors.
Adjustability: The 6-H support system offers vertical adjustability, making it easy to set the pipe height above the roof. This feature helps accommodate thermal expansion and contraction, preventing damage to both the piping and the roof membrane.
Compatibility: Designed for versatility, the 6-H Hanger Support works with all common decking types and built-up or single-ply roofing membranes.
Loading Capacity: Engineered to meet strict loading and deflection standards, the system ensures that member and component capacities are not exceeded. The maximum load from any MIRO base to the finished roof surface should not exceed 3.0 psi unless specified otherwise.
Hanger Options: The system supports different hanger types, including clevis, roller, band, and trapeze hangers. This allows for tailored solutions based on project needs.
Performance and Benefits:
The 6-H Hanger Support delivers exceptional performance by accommodating the dynamic nature of rooftop piping systems. Its rounded base design prevents roof membrane damage, ensuring long-term protection. Additionally, the system’s ability to handle thermal movement helps extend the lifespan of both the piping and the roofing materials.
Whether for new construction or retrofits, the 6-H Hanger Support offers flexibility, durability, and reliability. It is the ideal solution for securing rooftop piping with confidence.
